Teewing Turbo Force Full Carbon E-Bike Frameset (Avinox M2S)

Teewing Bikes

Avinox Drive System

Complete Frame Set Price : R74 500-00 (Excludes rear shox and chainring)

Complete Bike Build Price : As per Client Requirements

Shipping : Excluded

The Teewing Turbo Force will be available in 2 options :

    • Complete frame and motor set (excluding rear shox and chainring)

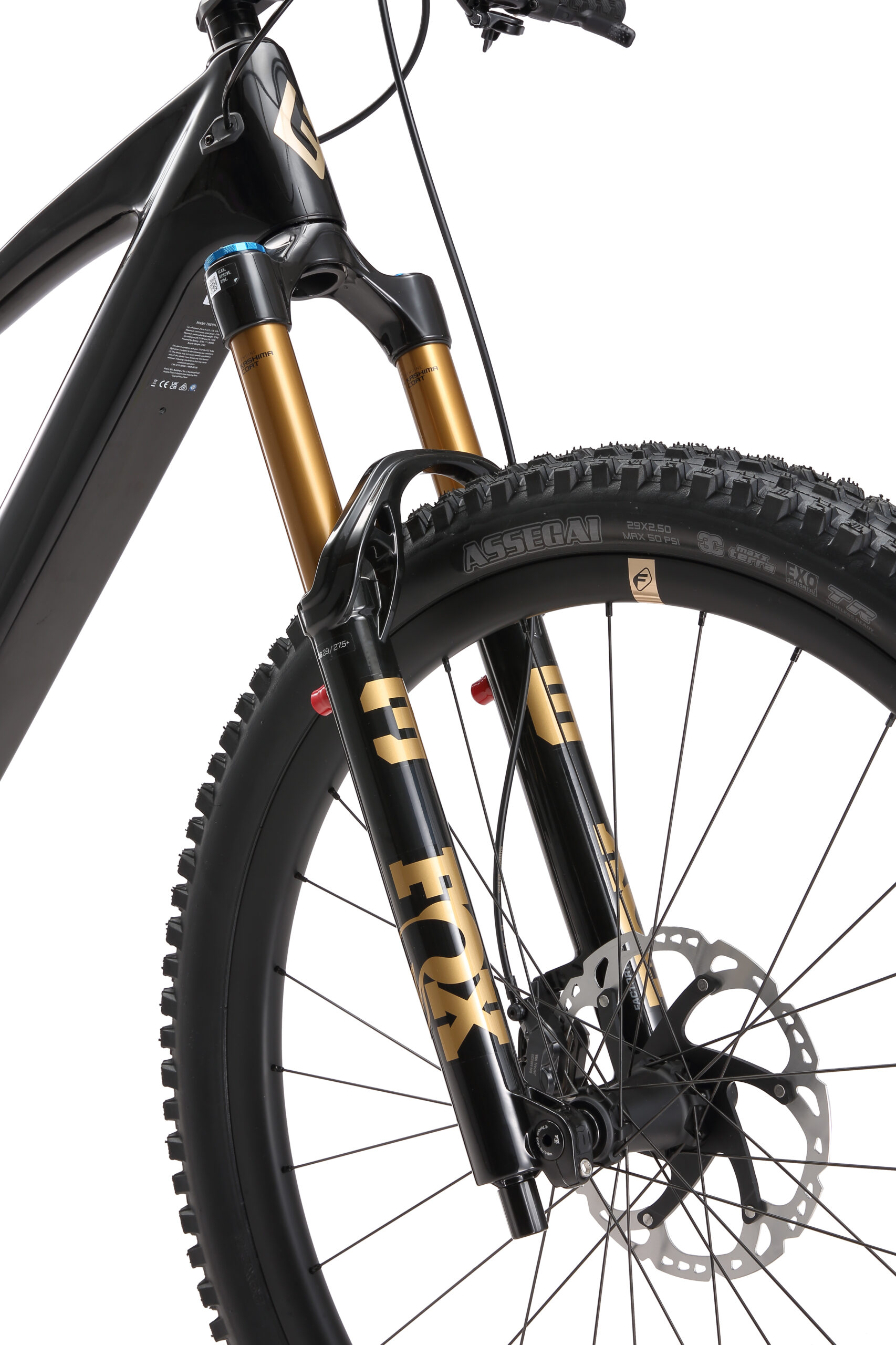

    • Complete frame and motor set with FOX 36 or 38 160mm fork and FOX X2 rear shox (excluding chainring)

The Teewing Turbo Force delivers up to 1300W peak power and up to 150 Nm torque in a full carbon frame. Lightweight, powerful, and smart built to conquer any trail with confidence and control.

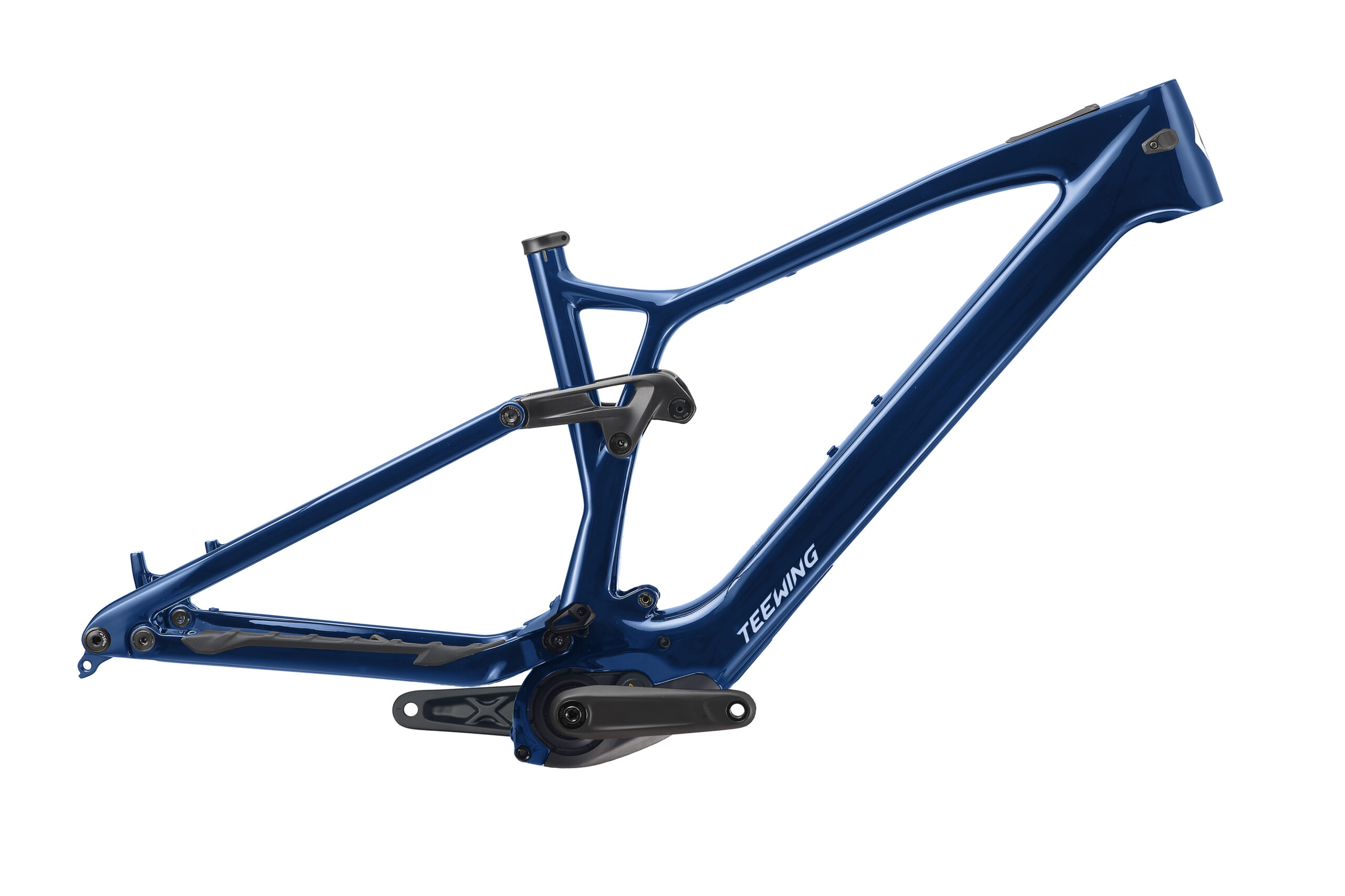

Enhanced Frame Stiffness

The Teewing Turbo Force carbon frame is crafted with monocoque technology and continuous reinforcements at critical junctions for superior structural integrity and load distribution. Weighing only 2.37kg, it delivers exceptional torsional rigidity—especially in the rear triangle—for high-performance, unmatched handling.

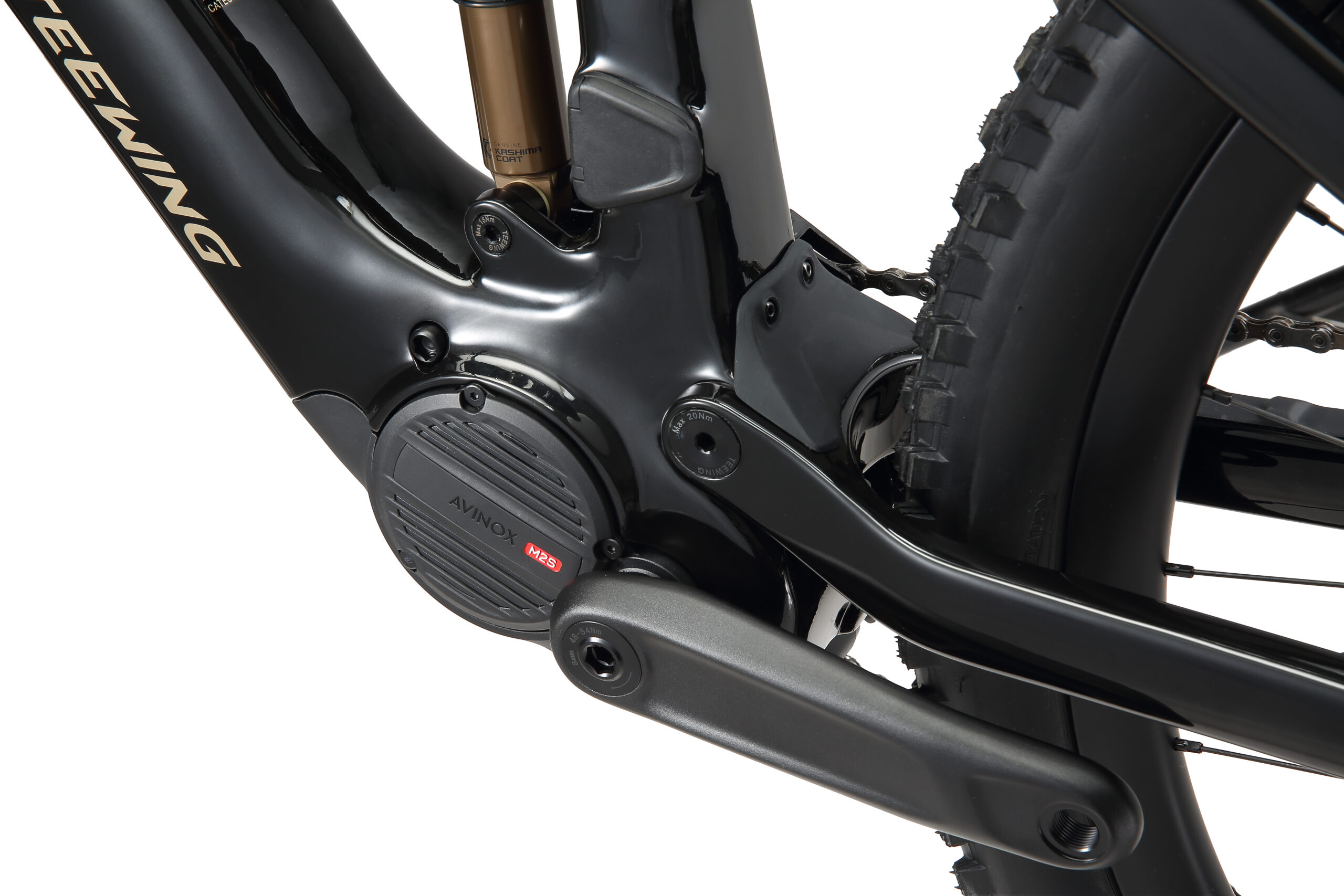

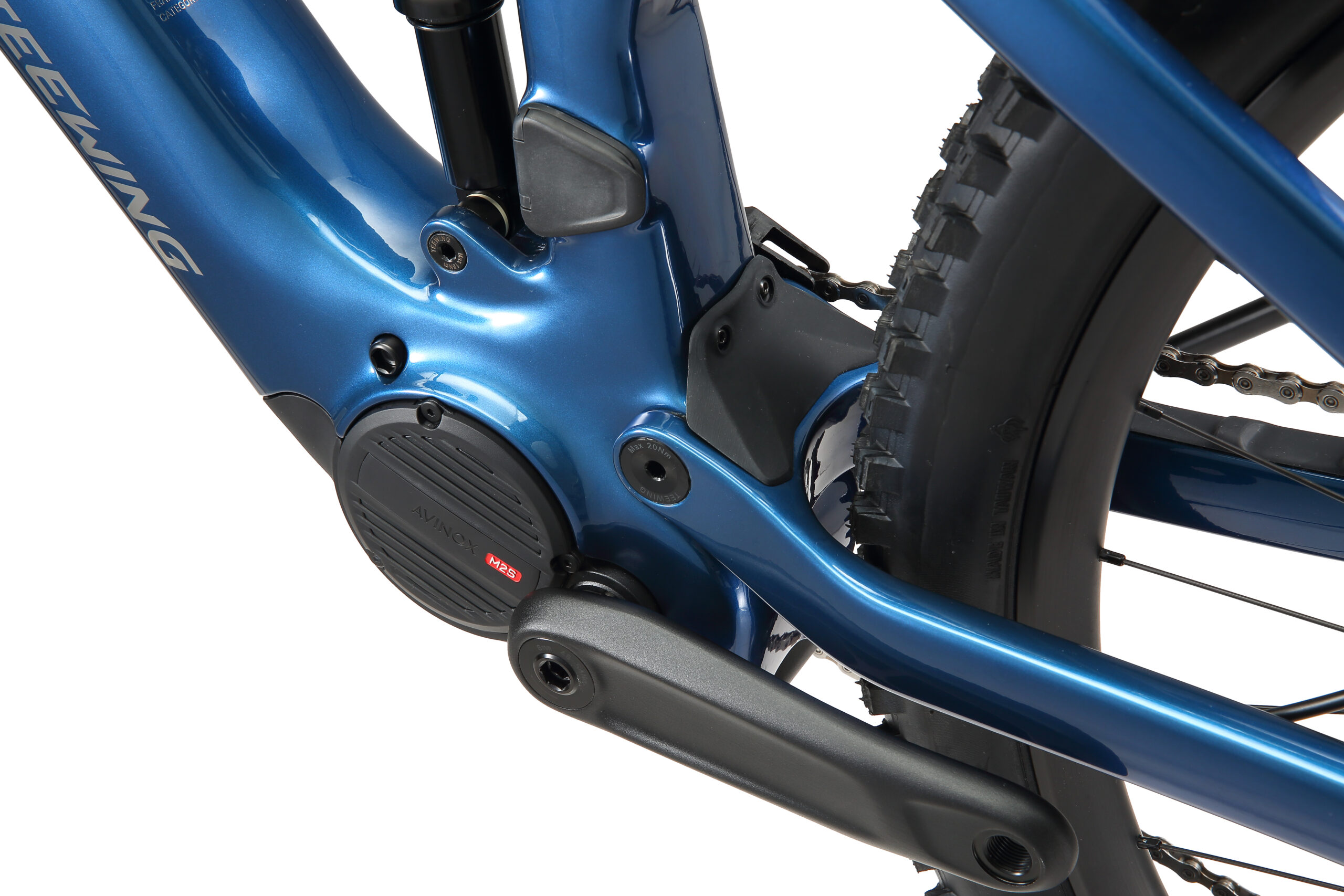

Avinox M2S Motor

​The Teewing Turbo Force E-Bike is equipped with the Avinox M2S Drive Unit, a compact motor weighing approximately 2.59 kg. Despite its lightweight design, it delivers a continuous torque of 130 N·m, providing robust power to tackle diverse terrains with ease. The M2S Drive Unit offers multiple assist modes, including Auto, Eco, Trail, Turbo, and Boost, allowing riders to customize their riding experience. This integration enhances the Teewing Turbo Force’s performance, offering riders a seamless and powerful experience across challenging landscapes.



Lightweight, High-Capacity Battery

The Teewing Turbo Force E-MTB is equipped with Avinox’s 800Wh/600Wh battery, weighing approximately 3.74 kg. This lightweight, high-capacity battery offers an impressive range of up to 157 km, enabling riders to embark on extended adventures with confidence.

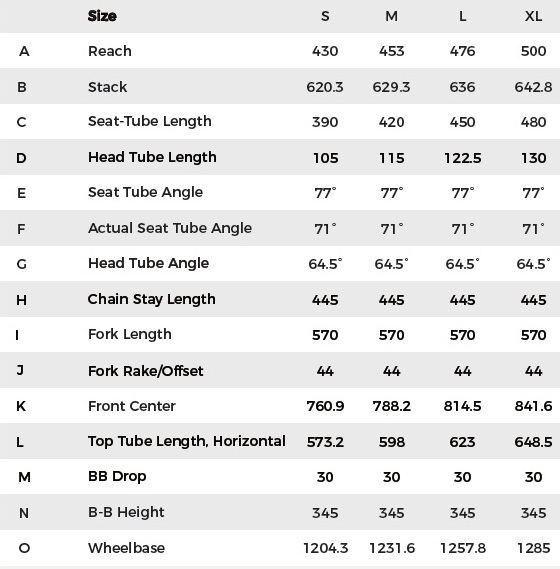

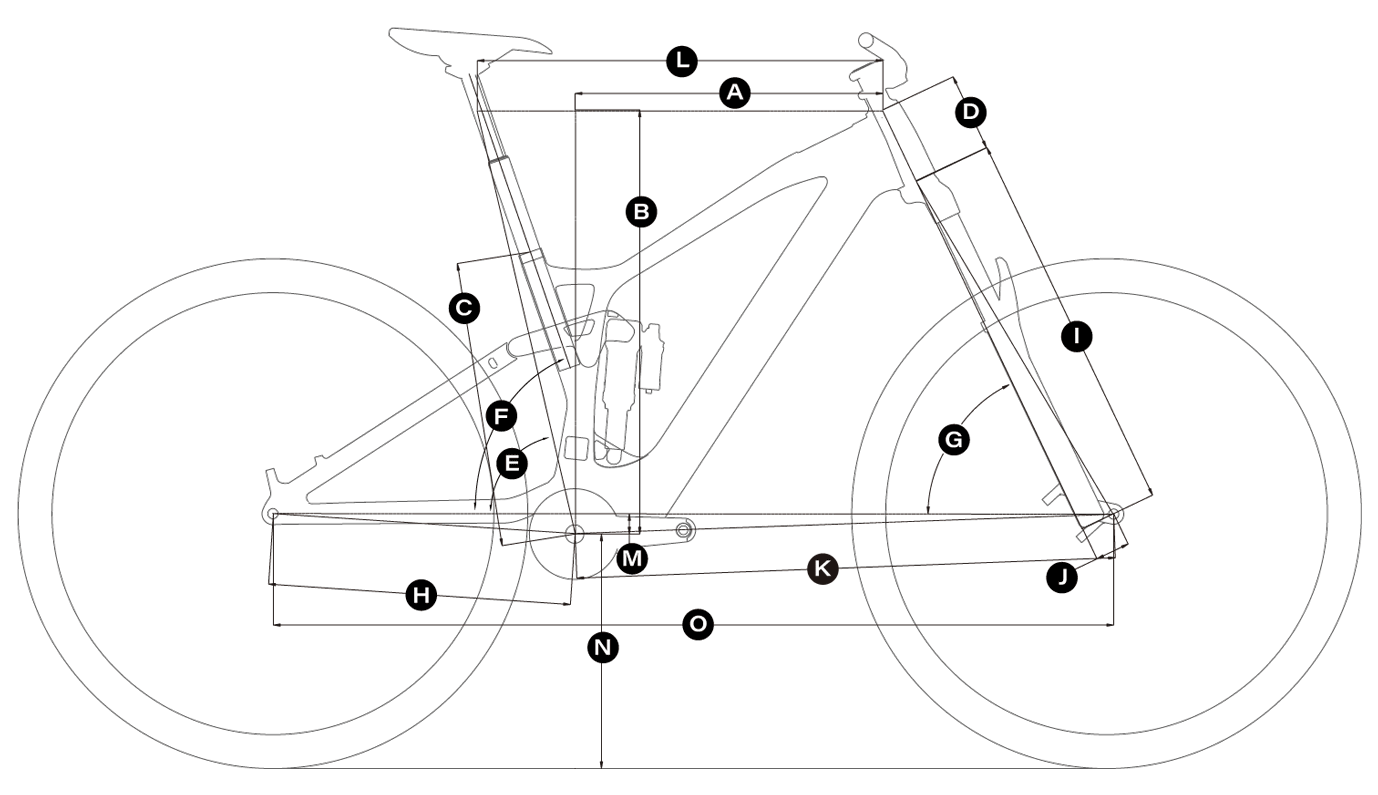

Geometry

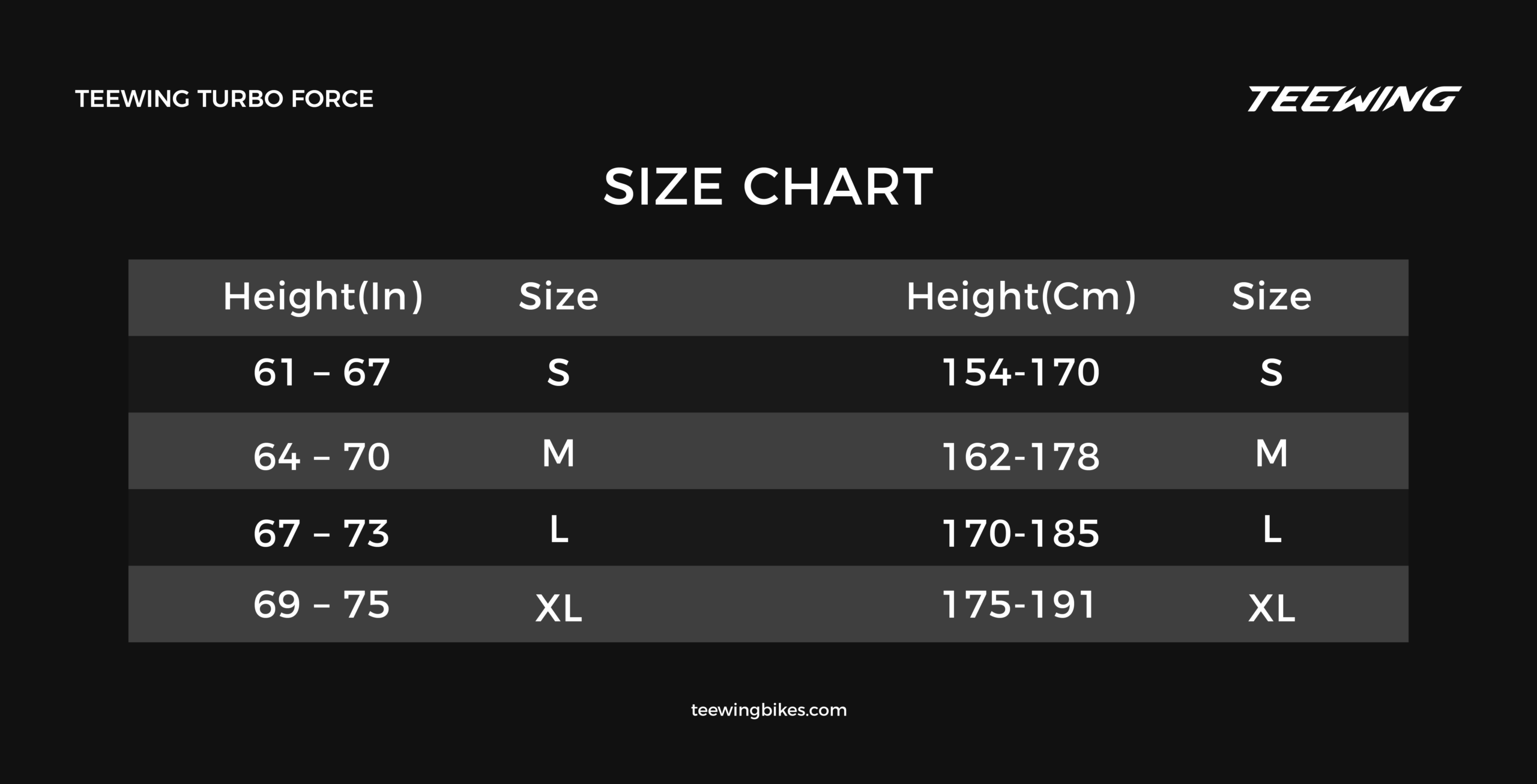

Size Chart

Specification

  • Frame
        • Teewing Turbo Force Carbon Frame
        • Cosmice Black/Cosmic Blue

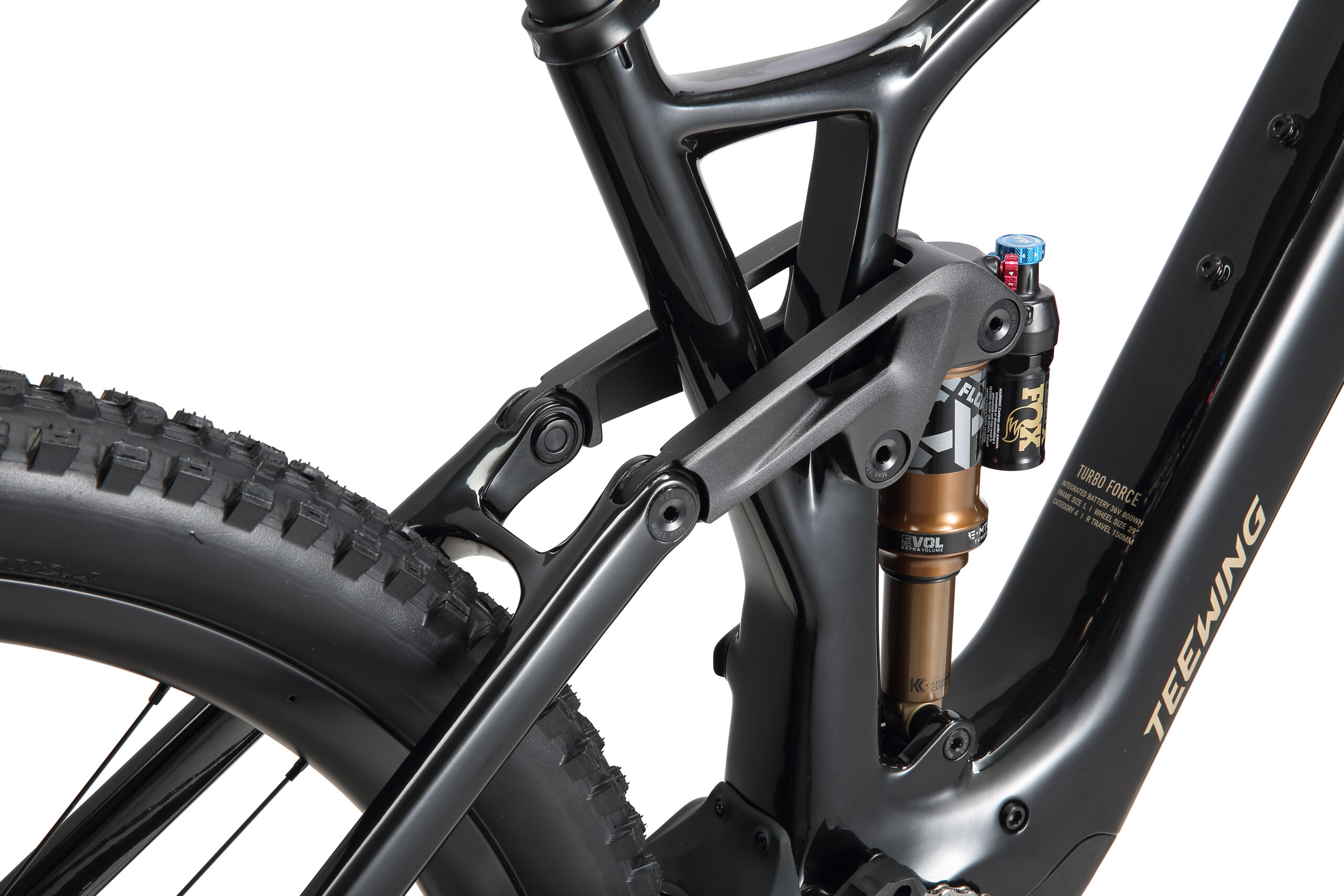

        • Rear Shox : Trunion Mount 185x55mm
        • Rear Shox Hardware : 36x8mm
  • Seatpost
        • EXA 31.6
            • Max Insertion length
                • M : 235mm
                • L  : 265mm
                • XL: 295mm
  • Travel
        • 150mm rear travel
        • 160mm front travel

E-bike System

        • Avinox M2S Drive Unit : 130Nm – 1300W
        • Avinox M2S Drive Unit : Boost Mode 150Nm up to 30 seconds
        • Avinox Integrated Battery: FS800-800Wh – M/L/XL FS600-600Wh – S
        • Avinox Fast Charger: 4A/168W
        • Avinox Screen: 2-inch OLED Control Display
        • Avinox Wireless Controllers: Right and left side
        • Chainring : 104bcd (Excluded)
        • Crank Arms : 155mm

Specifications and pricing are subject to change without prior notice.
